Sunshine 2000 digital electronic yarn cleaner

Sunshine 2000 digital electronic yarn cleaner is according to the characteristics of OE yarn spinning machine, the use of advanced computer technology, real-time inspection and control on the yarn quality in yarn spinning process, can effectively remove the short, long thick and long details of yarn faults and periodic short slub yarn faults also called (Moire) Kimon Sa, some spinning factory called the slubby yarn faults such as yarn faults, and can detect all kinds of yarn faults Street size on the statistics and analysis of causes, correct judgment of yarn faults and solve, improve the yarn quality, high quality objectives to achieve sound without junctions. Sunshine 2000 digital electronic yarn spinning type now and in the future, especially the necessary equipment of rotor spinning quality control.

1. The main features and functions:

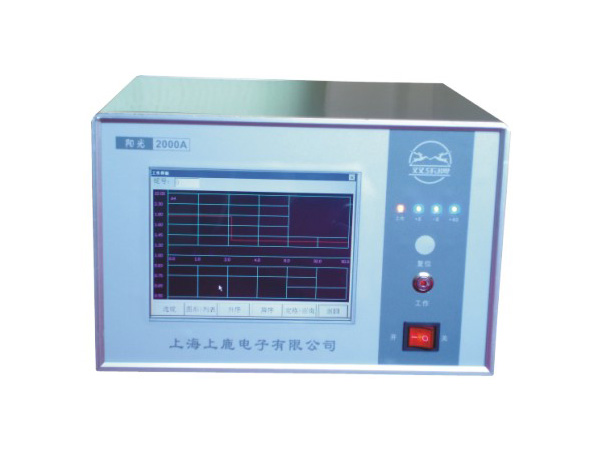

1) The main control box using CP104 computer, using liquid crystal display and touch screen, powerful function, convenient operation.

2) With print function, 232 communication interface, can realize the cluster network, quality monitoring system.

3) For the inspection of the ingot, check the spinning condition.

4) Using high-speed chip, control and treatment four ingot sensor, a high degree of integration, high reliability.

5) Using infrared sensor, strong anti-interference, not influenced by the environmental temperature and humidity.

6) Yarn calibration using single spindle automatic calibration, centralized analysis.

7) Suitable for low volume device, rotor spinning (spinning) machine, the general line speed is low, the conventional ring spinning electronic yarn clearer in this condition can not work normally, the product uses a unique electronic circuit, overcomes this problem, can correctly remove long thick long details of yarn faults.

8) Each tablet can be interchanged, machine installation, convenient repair.

2. Main technical parameters:

1) Yarn type: suitable for all kinds of natural fiber, chemical fiber pure yarn and blended yarn etc..

2) Yarn applicable scope: 5.8-97.2Tex, 6-100Nec, 10.2-169.5Nm.

3) diameter range of the short thick place: 0.75-2.75d; step adjustment.

4 length range of the short thick place: 1-9cm; step adjustment

5) diameter range of the long thick place: +0.15-0.55d

6) diameter range of the thin place : -0.15-0.55d long diameter set

7) length range of the long thick and thin place: 5-50cm

8）diameter range of the moire place: 0.3-1.1d

9）length range of the moire place: 0.5-4.5cm

10) Yarn speed: 60-160 M / min.

11) The power supply ripple ≤5mV file.

12) Power supply, voltage: -220V+10/15%V

13) The power control box carrying capacity: 240 spindles detection amplifier
