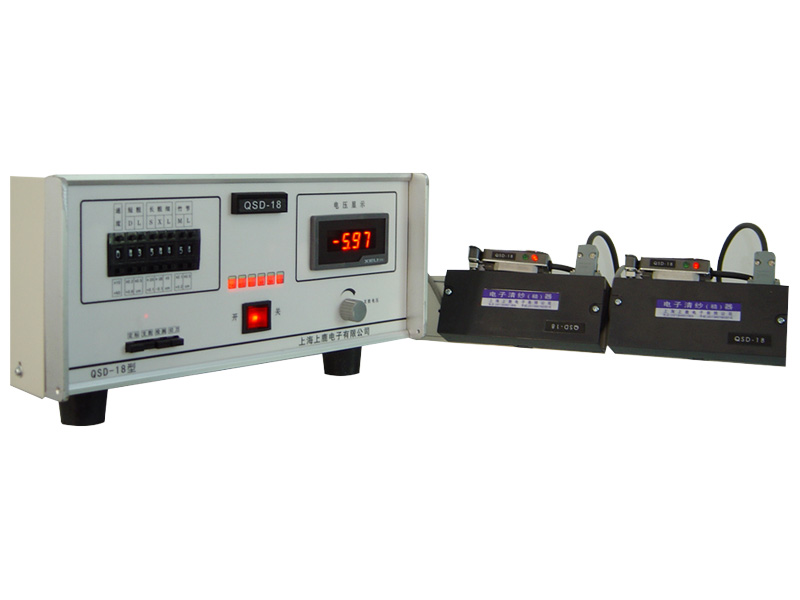

QSD-18 type rotor spinning full function electronic yarn cleaner

QSD-18 type rotor spinning full function electronic yarn cleaner is according to the characteristics of rotor spinning, electronic devices utilizing advanced and independent electronic circuit,It is the first to be used for the rotor spinning in china, It can real-time detection and control of the yarn quality in rotor spinning process. A static function,can effectively remove non standard joint of yarn, It can correctly remove the short, long thick and long thin to defect, It is necessary textile machinery for now and in the future rotor spinning machinery.

At present, has been widely cited in the "on the RFRS-10, 30 type", "the -621B", "Autocoro-117 ", "Titan -168, 268 type", "Jingwei -1603, 601" in rotor spinning equipment. Users get the praise.

1. The main features and functions:

1) This product belongs to the whole function of electronic yarn cleaner, with a static function,It can effectively remove non standard yarn joint, It can correctly remove the short、long thick.long thin and periodic（moire） to defect.

2) Suitable for low speed winding machine, on the rotor spinning machine, the general line speed is low, the conventional ring spinning electronic Other yarn clearer in this condition can not work normally, this product uses electronic circuit unique, overcame the problem, can remove the right long thick place and thin places.

3)The use of infrared photoelectric detection：It is not affected by the environment temperature and humidity,It can effectively overcome the external light. It does not damage the yarn quality.

4)A yarn calibration device, can according to different varieties, will be set to the appropriate setting, with yarn set equipment, can be set yarn clear range of different according to the different requirements of the process.

5)Circuit with automatic correction, to improve the stability and reliability of photoelectric sensor.

6)Each spindle, machine installation, convenient repair interchangeable.

2. Main technical parameters:

1) Yarn typl: suitable for all kinds of natural fiber, chemical fiber pure spinning and blended yarn etc..

2) Applicable scope: 7-32Nec. yarn

3) Spin line speed : 60-150 M / min.

3) Diameter range of short thick place: 0.8-2.4d step adjustmen

4) Length range of short thick place:: 0.5-4.5cm step adjustment

5) Diameter range of Long thick place: 0.15-0.55d step adjustment

6) Diameter range of thin place: 0.15-0.55d step adjustment

7) Length range of Long thick and long thint place: 5-45cm step adjustment

8) Diameter range of periodicity( moiré) place: 0.3-1.1d step adjustment

9) Length range of periodicity (moiré) place: 0.5-4.5cm step adjustment

10) The file: <5mV power supply ripple

11) Power supply, voltage: -220V (+ 10/15%) V/50Hz

12) The power control box carrying capacity: 80 spindle
