QSD-18Z electronic yarn cleaner

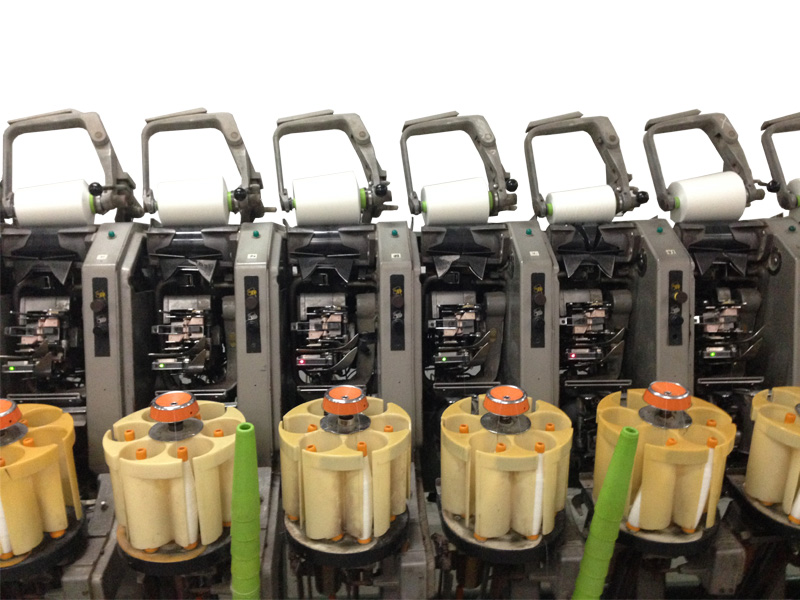

QSD-18Z electronic yarn cleaner is based on automatic winder features, new electronic yarn equipment and developed electronic devices utilizing advanced and electronic circuit original. The real-time detection and control of the yarn quality in the automatic winding machine for spinning process, can effectively remove the the short thick place, long thick place and long thin place, improve the quality of yarn.

1. The characteristics of one:

1) It belongs to the full function in th electronic yarn cleaner. A static function, and can remove the the short thick place, long thick place and long thin placeIn the process of winding, the biggest advantage of static function can effectively remove the defects of a joint

2) does not damage the fiber yarn quality

3) using infrared photoelectric detection, not influenced by the environmental temperature and humidity. Interference can effectively overcome the external light.

4) strong electromagnetic compatibility, anti-static, anti electromagnetic wave

5) a yarn calibration device, can according to different varieties will be set to set the value of the corresponding.

6) with yarn setting device, according to the different technological requirements, setting clear range of different yarn.

7) optical circuit is automatically adjusted, can automatically compensate the interference from various external, internal dust on the light source Aging effects and photoelectric sensor, improve the stability and reliability of photoelectric sensor.

8) each ingot can be interchanged, easy installation, repair.

2. Main technical parameters:

1) yarn type: suitable for all kinds of natural fiber, chemical fiber pure spinning, flax and blending

2) yarn applicable range: 5S-100s

3) yarn speed: 300-1200m/min.;

4) diameter range of the short thick place: 0.8-2.4d; step adjustment.

5) length range of the short thick place: 1-9cm; step adjustment

6) diameter range of the long thick place : ＋0.15 - +0.55d step adjustment.

7) diameter range of the long thin place: 0.15 - -0.55d; step adjustment.

8) length range of the long thick and thin place: 5-35cm; step adjustment

9) the file: <5mV power supply ripple;

10) power supply, voltage: 220V±(1015)%V;

11) the power control box carrying capacity: 60 spindle amplifier;
