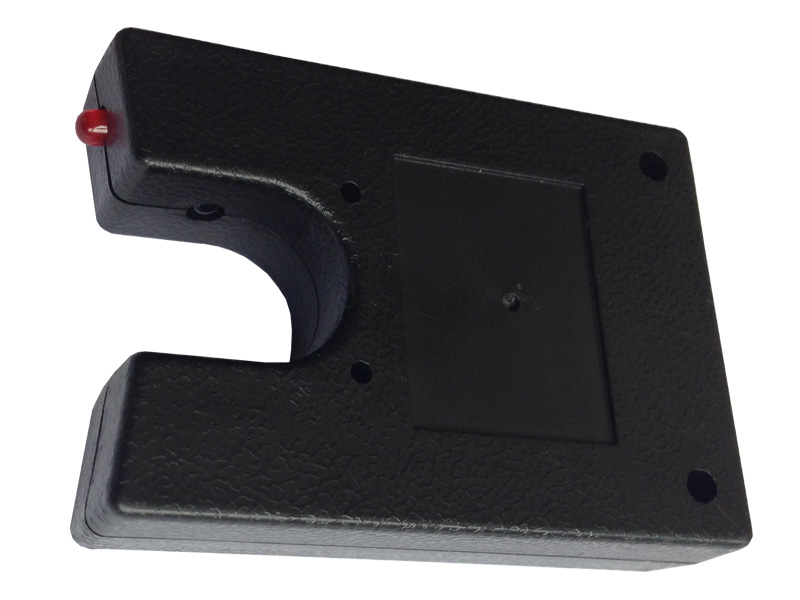

Electrical yarn detector

Electrical yarn detector is a special spinning equipment for the detection in the presence of fracture in the process of winding yarn. Adopting photoelectric sensor and integrated circuit, it has stable performance, strong anti-interference good sealed performance, and is adapt to the environment.

Performance and adaptation range:

Suitable for natural fiber, chemical fiber and blended yarn

Count range: 15-120s

Input voltage: 12v dc, 24v dc. (2 options)

Output voltage: high level: 11v dc (input voltage: dc 12v)

High level: 23v dc (input voltage: dc 24v)

Low level: < 0.5v dc

Service life: < 80,000 hours

Signal response time: ≤200ms

Dimensions:

Height×length×width: 55×55×12

Connection:

Red line: positive Blue line: earth Yellow line: signal output (gauze high level, non-gauze low level)
