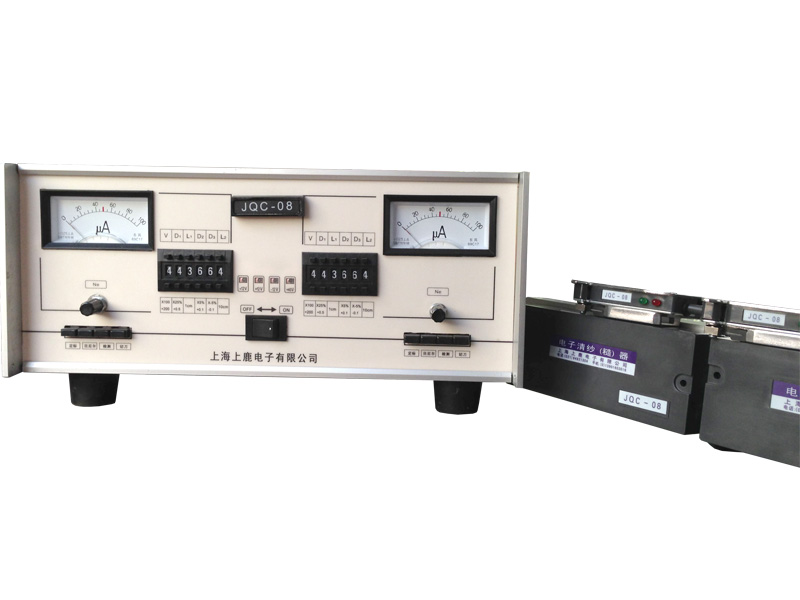

JQC-08 type electronic yarn cleaner

JQC-08 type electronic yarn cleaner is the new electronic and developed electronic devices utilizing advanced and electronic circuit original yarn clear equipment. It is the real-time detection and control of the quality of yarn in winding process, IIt can effectively remove the short thick place, long thick place and long thin place, enhance yarn quality, suitable for various kinds of winding equipment.

1. The characteristics of one

1) can correctly remove the short thick place, long thick place and long thin place thick.

2) with electronic detection, no damage to fiber yarn quality.

3) the use of photoelectric detection, not influenced by the environmental temperature and humidity.

4) a yarn with calibration function, can according to different varieties will be set to set the value of the corresponding.

5) with yarn setting device, according to the different technological requirements, setting clear range of different yarn.

6) optical circuit is automatically adjusted, can automatically compensate the interference from various external, internal dust on the light source .Aging effects and photoelectric sensor, improve the stability and reliability of photoelectric sensor.

7) uses infrared sensor, interference can effectively overcome the external light.

8) each ingot can be interchanged, easy installation, repair.

9) control box has an independent set of dual output.

2. Main technical parameters:

1) yarn type: suitable for all kinds of natural fiber, chemical fiber pure spinning, flax and blending

2) yarn applicable range: 6S-100s

3) yarn speed: 300- 1200 m/min.

4) diameter range of the short thick place: 0.75-2.4d; step adjustment.

5) length range of the short thick place: 1-9cm; step adjustment

6) diameter range of the long thick place : ＋0.15 - +0.55d step adjustment.

7) diameter range of the long thin place: 0.15 - -0.55d; step adjustment.

8)  length range of the long thick and thin place: 10-50cm; step adjustment.

9) the file: <5mV power supply ripple;

10) power supply, voltage: 220V ± (1015)%V;

11) the power control box carrying capacity: 60 spindle amplifier.
